A Style Apple iMac G5 Power Supply Capacitors Kit

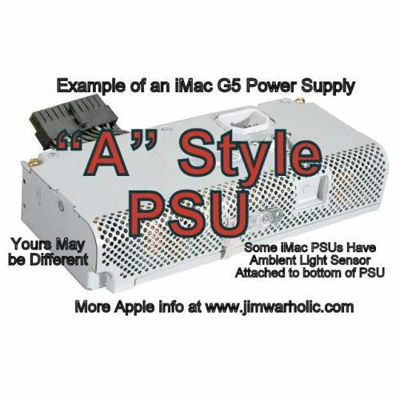

Apple iMac G5 Power Supply 20 Inch "A" Style (PSU Repair Kit: Capacitors Only)

11 Capacitors Listed

Capacitors Replacement Upgrade

1. 3300uf (qty. 1) 12.5mm X 20mm 10 V
2. 2200uf (qty. 1) 10mm X 25mm 10 V
3. 1000uf (qty. 4) 8mm X 20mm 16 V
4. 1200uf (qty. 1) 10mm X 20mm 16 V
5. 1000uf (qty. 1) 10mm X 23mm 25 V
6. 330uf (qty. 1) 10mm X 12.5mm 35 V
7. 120uf (qty. 1) 8mm X 15mm 50 V
8. 22uf (qty. 1) 5mm X 7mm 50 V

Refer to the list of Apple iMac G5 Power Supplies with detailed pictures and capacitor upgrade replacement comparisons. Make sure you verify which Apple iMac G5 power supply you have.

Capacitors are all high quality, switching power supply grade, low ESR, and long life ratings. The 3300uf has the longest life. Upgrade notice: Because of the difficulty in obtaining 10mm X 30mm 3300uf 10 Volts rated capacitors, I have upgraded this to the 12.5mm X 20mm 10 Volts rated capacitor. These 3300uf capacitors will fit into the space on the PSUs, but will stand above the circuit board slightly because of other components in the way at the base of the larger diameter capacitor. Note, the original 3300uf capacitors in my opinion were standing too high and shorting out on the top of the metal power supply cover as can be seen in the original trouble shooting section of the Apple iMac G5 Power Supply repair article. Note also, that some of the capacitors have been upgraded in voltage ratings. This was done as a matter of choice, in that a higher voltage is not necessarily required in the power supply, but where appropriate sizes were available in higher voltage ratings, I made the upgrade substitutions for extended performance and life expectancies.

Included with the order will be a replacement chart showing the original value capacitor and the replacement value capacitor with your PSU cap order. Please refer to this chart when installing the new caps.

Be sure to double check your motherboard capacitors too. Purchase both the MOB and PSU caps, and save on shipping costs.
